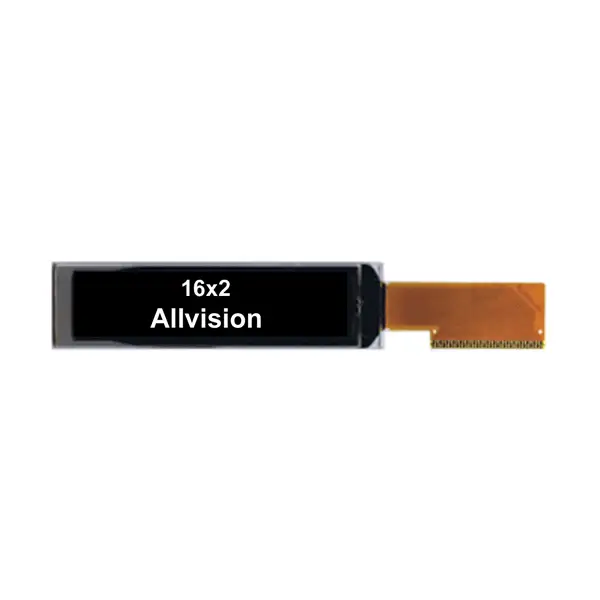

Character OLED Display 2.26
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Allvision, a leading innovator of PM OLED (Organic Light-Emitting Diode) technology:
High Contrast Ratio(10000:1)
Free Viewing Angle
Fast Response Time (≦ 10μs)
Thinner Lighter Durable
Wide Operation Temperature (-40~85℃)
No need of backlight, self emitting
Apply to most products from any area.
Trend of Displays
Leading the green vision
Specification
| Diagonal Screen Size | 2.26" | |||
| Number of Characters | 16x2 | |||
| Color Depth | Monochrome: White | |||
| Module Construction | COG | |||
| Panel Size (mm) | 67.2×17.5×2.0 | |||
| Active Area (mm) | 56.22×11.52 | |||
| Pixel Pitch (mm) | 0.6×0.7 | |||
| Pixel Size (mm) | 0.57×0.67 | |||
| Weight (g) | 5.01 | |||
| Brightness (cd/m2) | 120 (Typ) @ 1V | |||
| Interface | Parallel,SPI,I2C | |||
| Assembly | Soldering | |||
