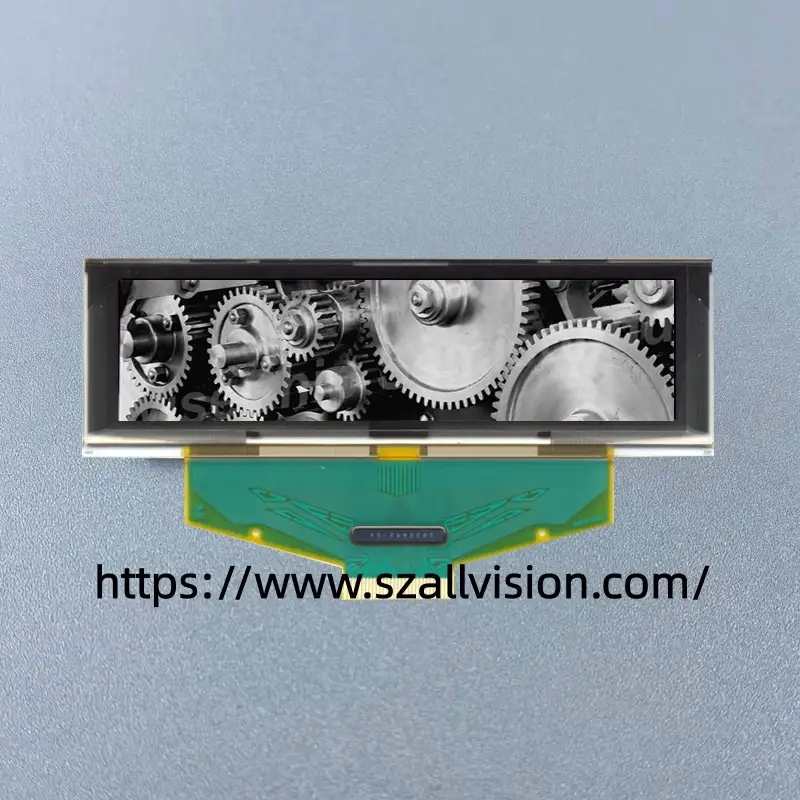

2.8 Inch Monochrome OLED Display 256x64 OLED Display Module SPI SSD1322
2.8 Inch 256x64 30 Pin SSD1322U PMOLED Small OLED Display
LIMITO OLED Description:
The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 2.8" inch model no. UG-5664ASWDF01 OLED display is made of 256 x 64 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 3 and 4 lines SPI interface. The module is made of COB OLEDs have the advantages of easily fixed modules on Customizedizeders’ applications because of having PCB board on it.
UG-5664ASWDF01 is a dot matrix 256x64 COF graphic type passive matrix OLED display module. The size of the active area is 2.8” diagonal with module dimension 84.00 × 25.80 × 2.00 (mm) . This 2.8 inches OLED display has built-in IC SSD1322U. There are many interface options to choose from, including 6800, 8080 and SPI interface. Logic supply voltage ranges from -0.5V-2.75V. The available emitting colors are white and support grayscale. It is great for the application such as medical device, POS system, white goods, home applications, industrial instrument, automation, audio/visual display systems, personal care appliances, household goods, automobile displays, Dynamic information displays etc.
LIMITO OLED Specification:
| Part Name: | OLED Display Module |
| Limito Part ID: |
UG-5664ASWDF01
|
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome with 16 Gray Scales(White) |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 256 X 64 |
| Module Size: | 84.00 X 45.80 x 2.00 (mm) |
| Panel Size: |
84.00 x 25.80 x 2.00 (mm) including "Anti-Glare Polarizer"
|
| Active Area: | 69.10 x 17.26 (mm) |
| Pixel Pitch: | 0.27 X 0.27 (mm) |
| Pixel Size: | 0.254 X 0.254 (mm) |
LIMITO OLED Mechanical Drawing
LIMITO is OLED Display module supplier,it’s a market leader and pioneer in OLED solutions which include Transparent OLED,Flexible OLED,Monochrome OLED,Character OLED,Segment OLED,Area Color OLED, Full color OLED,Customizedized design products ect.
LIMITO OLED Benefits:
High Contrast Ration(10,000:1)
Free Viewing Angle
Fast Response Time(<15us)
Thinner & Lighter & Durable
Wide operation Temperature-40°c~+85°c
Self-emitting,No need of Backlight
LIMITO OLED Application:
Industrial: Mearusring& meter, OA Equipment, POS & Server Card Reader, Door Security, USB Key
Communication: Mobile Phone, Bluetooth Device, Router, Set-Top Box
Automotive: Head Up display, Car Audio, Speed Detector, ECT, Timer, Climate Control, Dashboard
PC peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen
Medical: Glucose Meter, Oximeter, Blood-pressure Meter, Beauty & Cosmetic Equipment
Consumer: IoT, E-Cigarette, Wearable Device, Remote Controller, Game Machine, Digital Camera, Audio Video Equipment
